Why DRILL 25 Oil Pump With Drill Connection ?

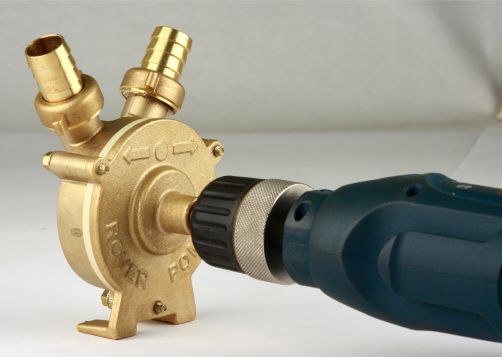

WHAT IT IS: It is a self-priming liquid ring pump with a star-shaped impeller, equipped with two-way rotation as standard, and an external transmission shaft, designed for driving the pump with any type of spindle drill. The unique hydraulic geometry allows the pump to operate even with air bubbles present in the suction liquid.
HOW IT WORKS: To obtain suction capacity, it is necessary to fill the pump body through one of the fittings. The suction capacity is present in both directions of rotation.
TRANSFERABLE LIQUIDS: Neutral, food-grade, clean, non-viscous, chemically non-aggressive or abrasive, with a transfer temperature not exceeding 35°C, is the characteristic of liquids that can be transferred by the pump. The viscosity of the liquid shall not exceed 3 cps for continuous free-delivery service, and shall not exceed 20 cps for intermittent free-delivery service, with the presence of an operator for surveillance. Some examples: water, wine, diesel fuel.
| FEATURES | |
|---|---|
| Model | DRILL 25 |
| Code | 340000 |
| Output | 42 Lt/Min |
| Rpm | 2850 |
| Inlet – Outlet | Ø25 Mm |
| Maximum Temperature | 35° |
| Box Dimensions | 80x10x12 Cm |
| Weight | 2 Kg |
| Warranty Period | 24 Month |
